Railcrane Gottwald GS 1000.06 T
The real one
4 double-trucks with 8 axles alltogether, 4 of them are driven, total length 13,0 m, weight 128 t, max. speed 120 km/h, max. lift capacity 100 t.
Operation aera: 0,5 m to 15,0 m before puffers (7,0 - 21,5 m radius). Counterweight adjustable from min. 2,0 m to 10,0 m. [from: kibri Catologue 2000]
The model
The model is my first 8-wide MOC and my first MOC after my Dark Ages in autuum 2000. The cable is powered by a micromotor, the boom could be pulled out by hand and is risen by the LEGO Pneumatic (2 zylinders work in row). The upper structure can be rotated by 360° and the whole railcrane will run through curves and points. The counterweight could be vertically adjusted (by hand).

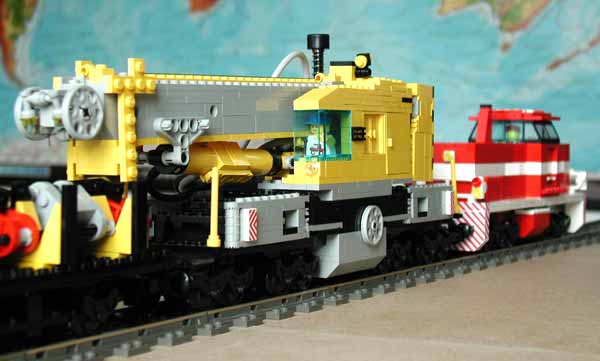

Heading forward to the next job …
The Railcrane and some supplemental waggons.

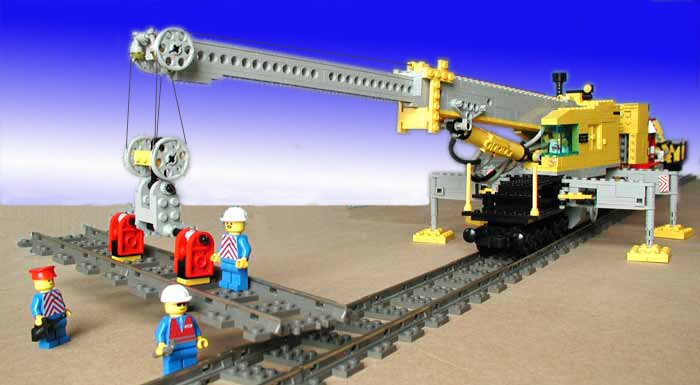

On duty.
Heavy load: a locomotive from set #7740 is lifted.
Specifications
| Drive: | none |
| Type: | 8-wide, Railcrane with electric winch and pneumatic boom |
| Total Length: | ~0,50 m |
| Year of Construction: | 2000 |
Building instructions and part lists
There are no building instructions und part lists available for the models shown on this web site. There are no engineering drawings available. To build the LEGO models only photographs from the real prototypes were used. All models are unique and not for sale.
