ICE 3 "Stuttgart" (BR 403)

Highslide JS
ICE 3 as LEGO model

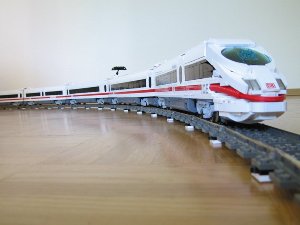

The idea

The idea of building this train as a LEGO model isn't new for me. But I never came up with a solution I was satisfied with. The nose of the train is a real challenge, but using 6x6 dishes as front windscreen and some of the new sloped elements coming in some LEGO car sets helped a lot to get the shape right.

Highslide JS
The real one: ICE 3 – With kind permission by Claudia Franke www.ICE-fansite.de

The real one

The ICE 3 is the latest version of the famous German high speed passenger trains. As the real one, my LEGO model comes in 8 units. This type of train doesn't differ between locomotive and waggons, the electric motors are based underneath every second car.

Videos showing ICE 3

Parallel ride – YouTube Video

From bird's eye perspective – ICE 3 and Thalys – YouTube Video

Test ride while setting up the layout as test – Flickr Video

Highslide JS
ICE 3 as LEGO model

Further pictures

The end-waggons are 56 studs long, the middle-waggons are 52 studs long. The whole train is about 3.5 m (~11.5 feet) long. Due to the fancy SNOT use of the curved slopes the width of the train is a bit more then 7 studs, but less then 7.5 studs.

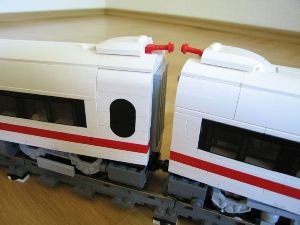

The 2nd and 7th unit have a pantograph.

Highslide JS
ICE 3 as LEGO model

The units are coupled together using car coupling, no train magnets.

Highslide JS
ICE 3 as LEGO model

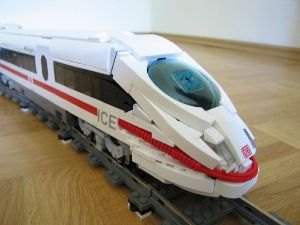

The characteristic ICE 3 nose – using LEGO to build this is quite a challenge.

Highslide JS
ICE 3 as LEGO model

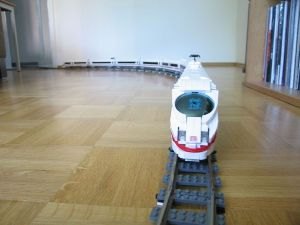

Front view.

Highslide JS
ICE 3 as LEGO model

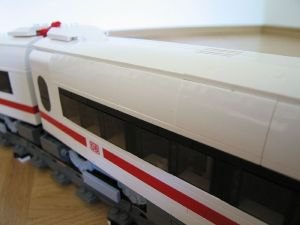

Countless "Slope, Curved 2 x 4 x 2/3 No Studs" (the element #61068 at www.bricklink.com) were used to build the roof.

Highslide JS
ICE 3 as LEGO model

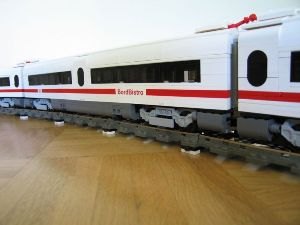

The onboard restaurant called "BordBistro".

Highslide JS
ICE 3 as LEGO model

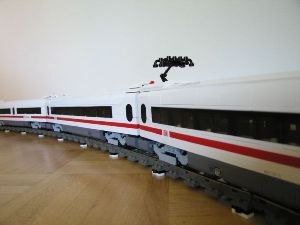

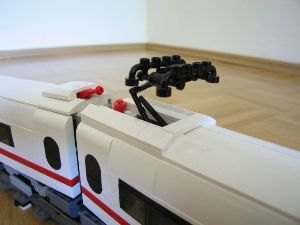

Closeup of the pantograph.

Highslide JS
ICE 3 as LEGO model

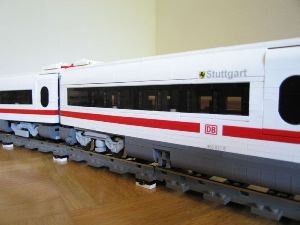

Most ICE trains carry a name of a German or European city. I choosed "Stuttgart" which is the next bigger city to where I live. The train number is Tz 337 and each waggon carries it's own number, 403 037-5, 403 137-3, 403 237-1, 403 337-9, 403 837-8, 403 737-0, 403 637-2 and 403 537-4.

Highslide JS
ICE 3 as LEGO model

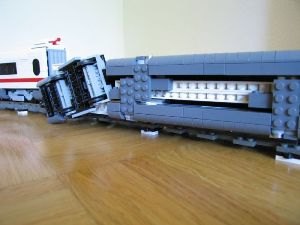

This is what the train looks like underneath.

Highslide JS
ICE 3 as LEGO model

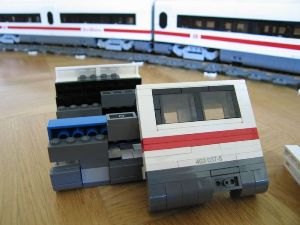

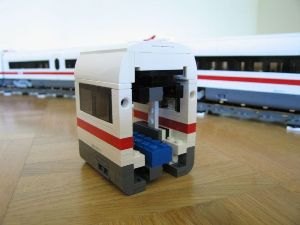

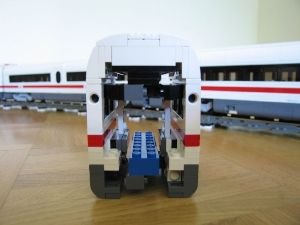

A slice of the waggons shows how all 8 waggons are build.

Highslide JS
ICE 3 as LEGO model

The roof structure is the heaviest part.

Highslide JS
ICE 3 as LEGO model

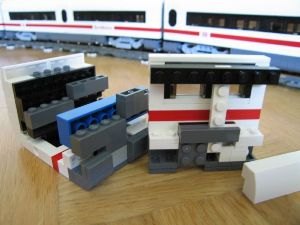

A SNOT element (1x4 bricks with studs on the side) help to attach some of the sloped curved bricks/plates.

Highslide JS
ICE 3 as LEGO model

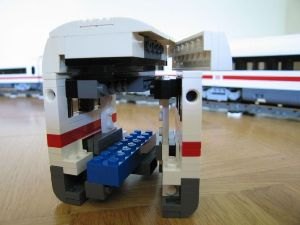

The walls of the waggon are attached to the roof section and the center section. It's a nightmare to build this because you can not hold bricks inside the waggon.

Highslide JS
ICE 3 as LEGO model

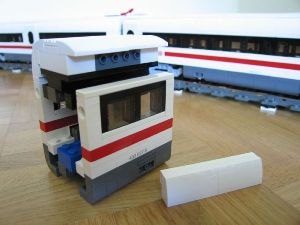

SNOT windows using James Mathis' design.

Highslide JS
ICE 3 as LEGO model

See how everything fits together.

Highslide JS
ICE 3 as LEGO model

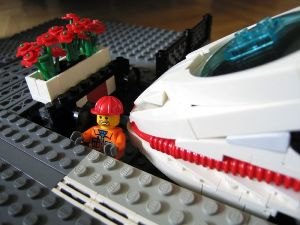

Baptism of a train: the Tz 337 is called "Stuttgart" now.

Highslide JS
ICE 3 as LEGO model

Upps …

Highslide JS
ICE 3 as LEGO model

The baptism of the train. Some expensive champagne was poured over the trains name sticker. Some very important folks from the train company talked for hours …

Specifications

Drive: 4x 9V train motor (2x in each end-waggon)
Type: 7,3-wide, highspeed train with 8 units
Length end-waggon: ~44 cm (~56 studs)
Length middle-waggon: ~42 cm (~52 studs)
Total Length: ~3,5 m (~11.5 feet)
Year of Construction: 2009



Building instructions and part lists

There are no building instructions und part lists available for the models shown on this web site. There are no engineering drawings available. To build the LEGO models only photographs from the real prototypes were used. All models are unique and not for sale.

Why doesn't building instructions exist?
